XGecu T48 [TL866-3G] Programmer Support 28000+ ICS for EPROM/MCU/SPI/Nor/NAND Flash/EMMC/IC Tester/ TL866CS TL866II Replacement +9 Parts

£49.973£71.39Clearance
ZTS2023's avatar
Shared by
ZTS2023
Joined in 2023
82
63

About this deal

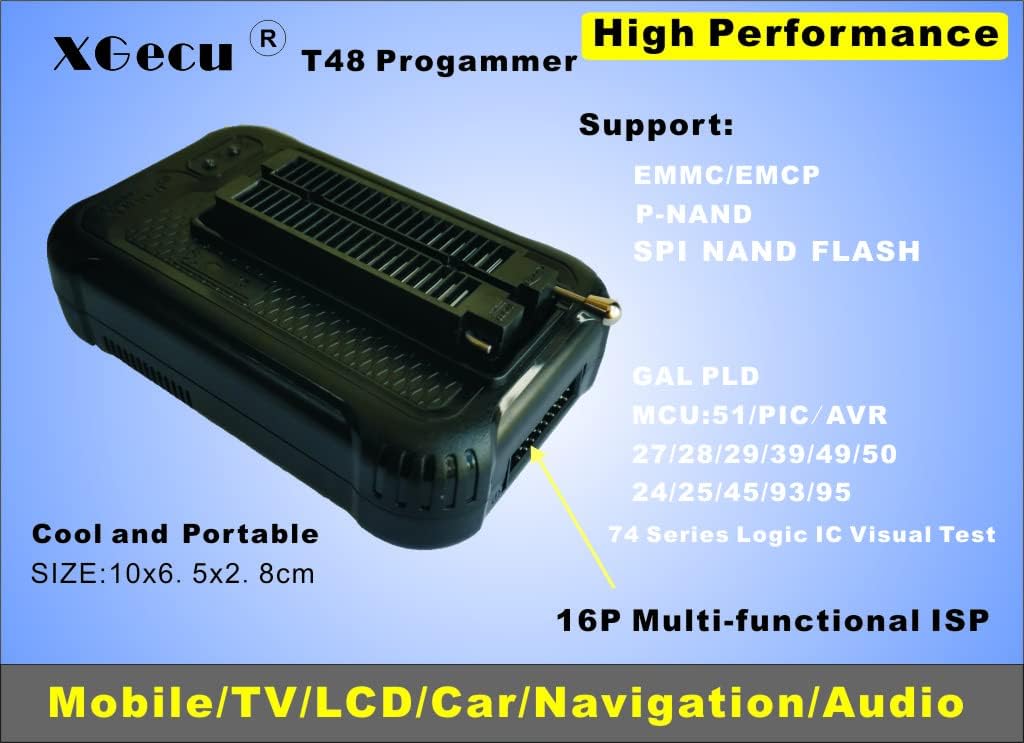

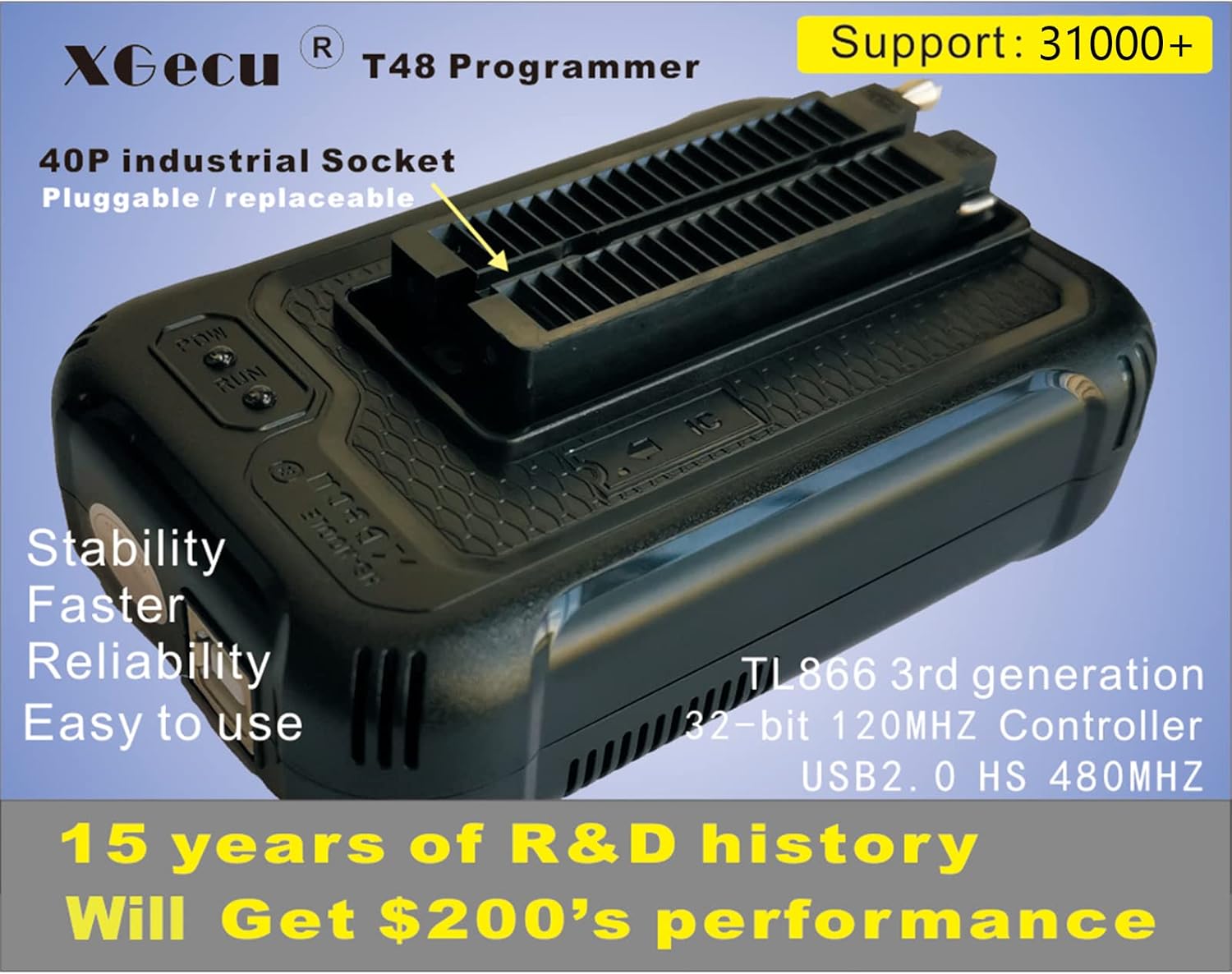

  • 1. With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer. Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, VPP Maximum up to 25V, that is what TL866II cannot achieve.

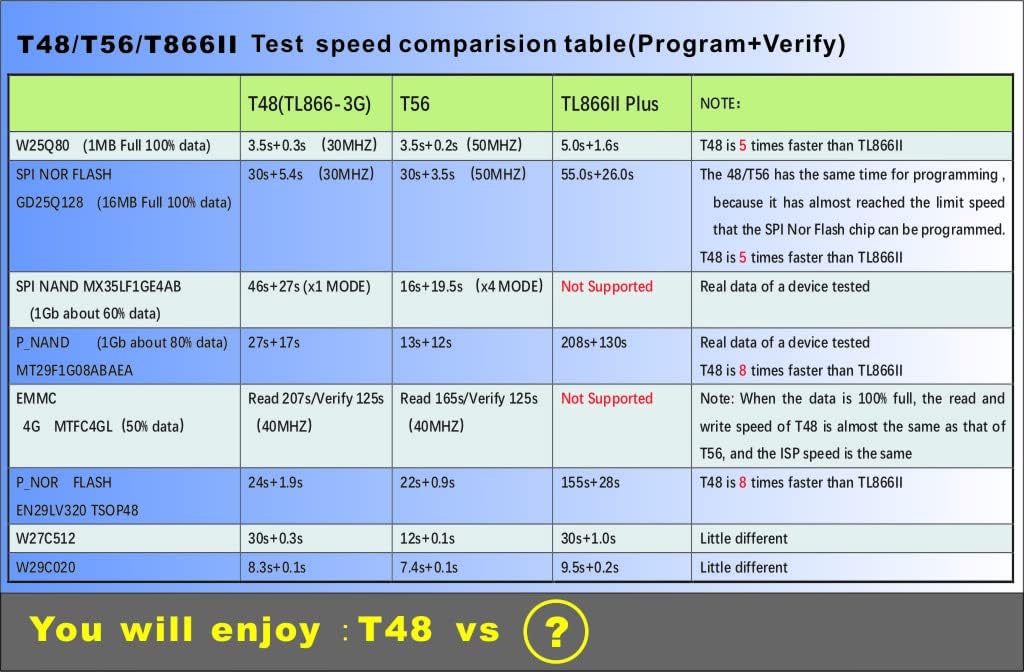

  • 2. Programming speed much faster. For example, for W25Q80, 3.5s+0.3s(Program+Verify) (30MHZ); for SPI NOR FLASH 25Q128, 30s+5.4s(P+V) (30MHZ); for P_NAND 29F1G08AB, 27s+17s(P+V); for P_NOR FLASH EN29LV320 TSOP48, 24s+1.9s(P+V)...... Support EMMC/EMCP; P-NAND; SPI NAND FLASH; GAL PLD; MCU: 51/PIC/AVR; 27/28/29/39/49/50; 24/25/45/93/95; 74 Series Logic IC Visual Test; please note: TSOP56/BGA64/DIP42 will be added future (wrote on July 5th, 2022).
  • 3. Please note: the package don't include CD, you can download documents as below: www.mediafire.com/folder/hfg5kfj7euw5j/xgecu; Please check the support list for the details: www.xgecu.com/MiniPro/T48_List.txt; Before buying, make sure the models you want to program are in the support list. The new software will be improved future, so please contact us to resolve at first if any questions and suggestions.
  • 4. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster, support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11.

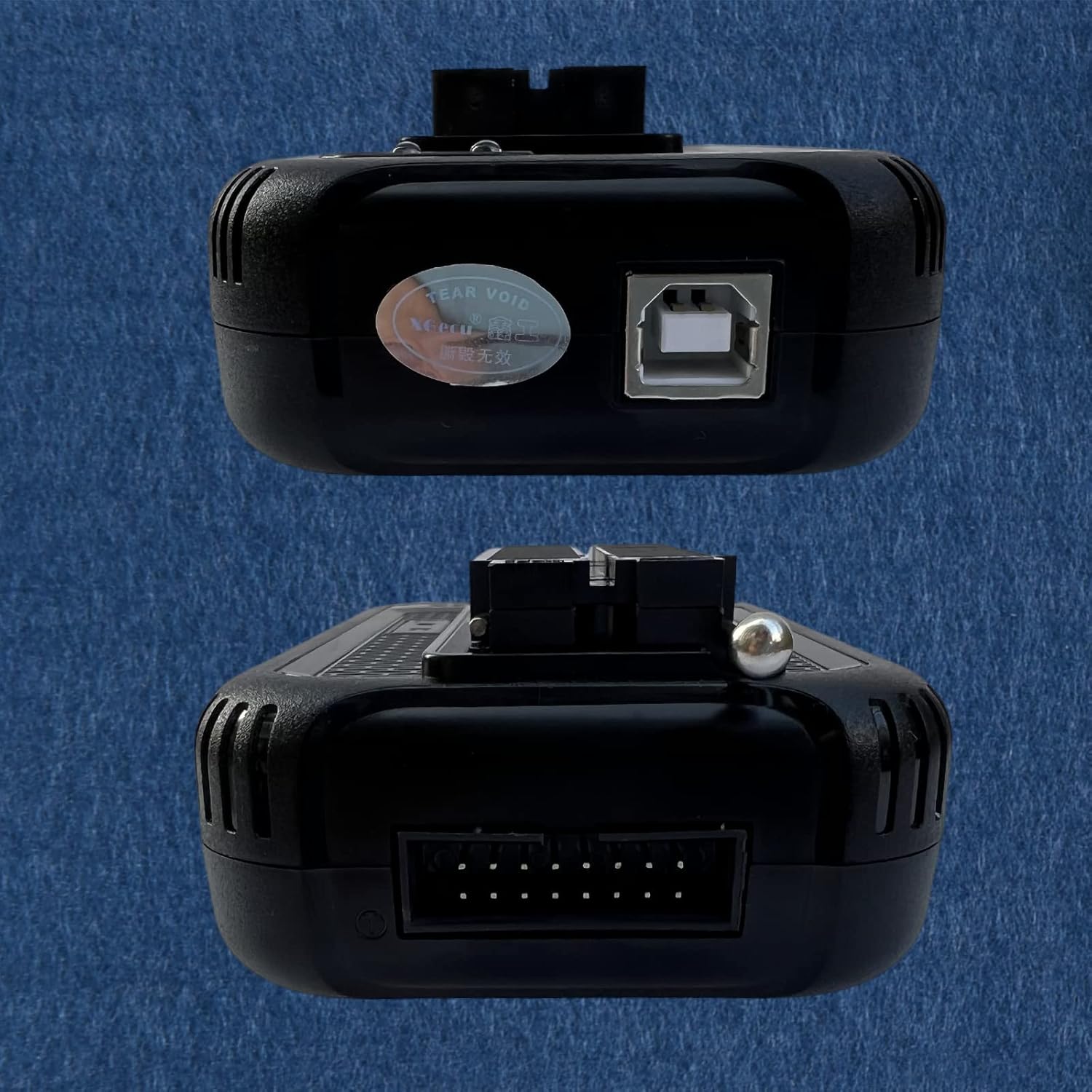

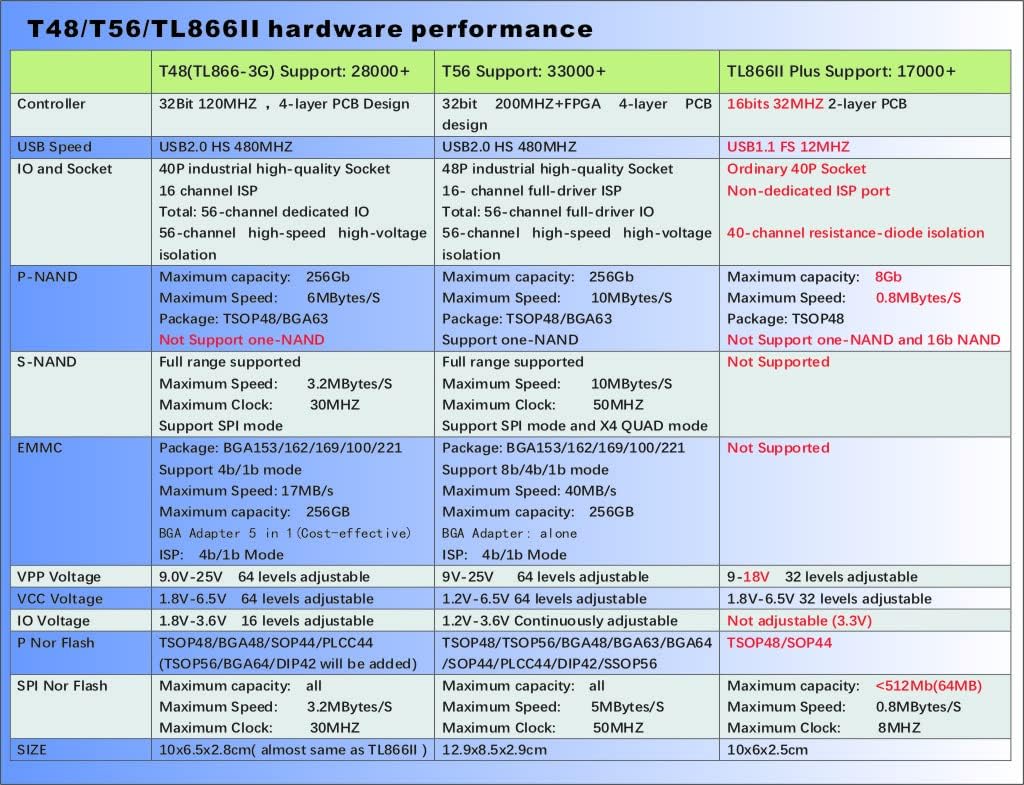

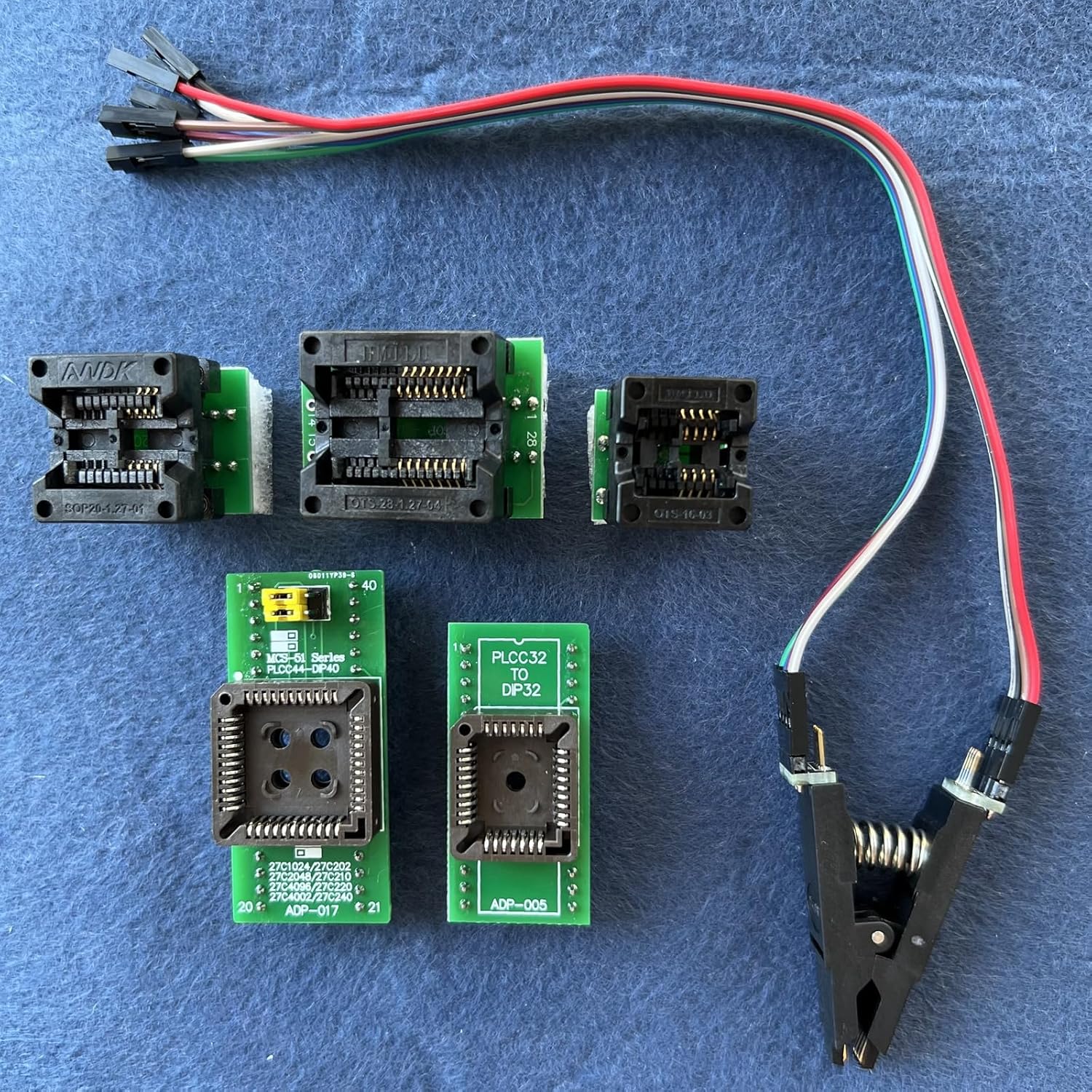

  • 5. XGecu T48 (TL866-3G) hardware Parameters: 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 HS 480MHZ; Volume: 10X6.5X2.8 cm (almost the same as TL866II); 16 channel ISP, total 56-channel dedicated IO, 56-channel high-speed high-voltage isolation; VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable; Power consumption: 5V <500MA. This packag includes some useful adapters: such as SOIC8 150MIL/200MIL; SOIC16 300MIL; PLCC32-DIP32; PLCC44-DIP40, SOP8 test clip
